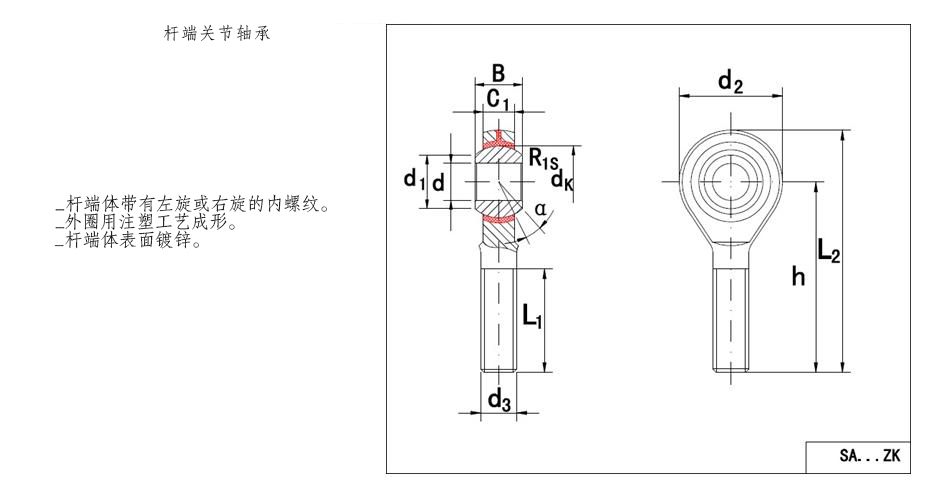

| 侏催 |
樫雁 mm |
減塞 KN |
嶷楚 kg |
|
d |
d3 |
B |
C1 |
L1 |
d2 |
L7 |
h |
L2 |
dk |
d1 |
R1s |
a |
強 |
床
|
|
|
|
6g |
|
|
min |
|
min |
|
|
|
|
|
「 |
C |
C0 |
| SA5ZK |
5 |
M5x0.8 |
8 |
6 |
20 |
16 |
|
33 |
41 |
11.11 |
7.7 |
0.3 |
13 |
3.25 |
5.7 |
0.013 |
| SA6ZK |
6 |
M6x1.0 |
9 |
6.75 |
22 |
18 |
|
36 |
45 |
12.7 |
8.96 |
0.3 |
13 |
4.3 |
7.2 |
0.02 |
| SA8ZK |
8 |
M8x1.25 |
12 |
9 |
25 |
22 |
|
42 |
53 |
15.875 |
10.4 |
0.3 |
14 |
7.2 |
11.6 |
0.03 |
| SA10ZK |
10 |
M10x1.5 |
14 |
10.5 |
29 |
26 |
|
48 |
61 |
19.05 |
12.9 |
0.3 |
13 |
10 |
14.6 |
0.055 |
| SA12ZK |
12 |
M12x1.75 |
16 |
12 |
33 |
30 |
|
54 |
69 |
22.225 |
15.4 |
0.3 |
13 |
13.4 |
17 |
0.085 |
| SA12-1ZK |
12 |
M12x1.25 |
16 |
12 |
33 |
30 |
|
54 |
69 |
22.225 |
15.4 |
0.3 |
13 |
13.4 |
17 |
0.085 |
| SA14ZK |
14 |
M14x2.0 |
19 |
13.5 |
36 |
34 |
|
60 |
77 |
25.4 |
16.9 |
0.3 |
16 |
17 |
24 |
0.14 |
| SA16ZK |
16 |
M16x2.0 |
21 |
15 |
40 |
40 |
|
66 |
86 |
28.575 |
19.4 |
0.3 |
15 |
21.6 |
28.5 |
0.21 |
| SA16-1ZK |
16 |
M16x1.5 |
21 |
15 |
40 |
40 |
|
66 |
86 |
28.575 |
19.4 |
0.3 |
15 |
21.6 |
28.5 |
0.21 |
| SA18ZK |
18 |
M18x1.5 |
23 |
16.5 |
44 |
44 |
|
72 |
94 |
31.75 |
21.9 |
0.3 |
15 |
26 |
42.5 |
0.28 |
| SA20ZK |
20 |
M20x1.5 |
25 |
18 |
47 |
50 |
|
78 |
103 |
34.925 |
24.4 |
0.3 |
14 |
31.5 |
52.5 |
0.38 |
| SA22ZK |
22 |
M22x1.5 |
28 |
20 |
51 |
54 |
|
84 |
111 |
38.1 |
25.8 |
0.3 |
15 |
38 |
57 |
0.48 |
| SA25ZK |
25 |
M24x2.0 |
31 |
22 |
57 |
60 |
|
94 |
124 |
42.86 |
29.6 |
0.3 |
15 |
47.5 |
68 |
0.64 |
| SA28ZK |
28 |
M27x2.0 |
35 |
24 |
62 |
66 |
|
103 |
136 |
47.63 |
32.3 |
0.3 |
15 |
58 |
75.5 |
0.96 |
| SA30ZK |
30 |
M30x2.0 |
37 |
25 |
66 |
70 |
|
110 |
145 |
50.8 |
34.8 |
0.3 |
17 |
64 |
88 |
1.1 |
