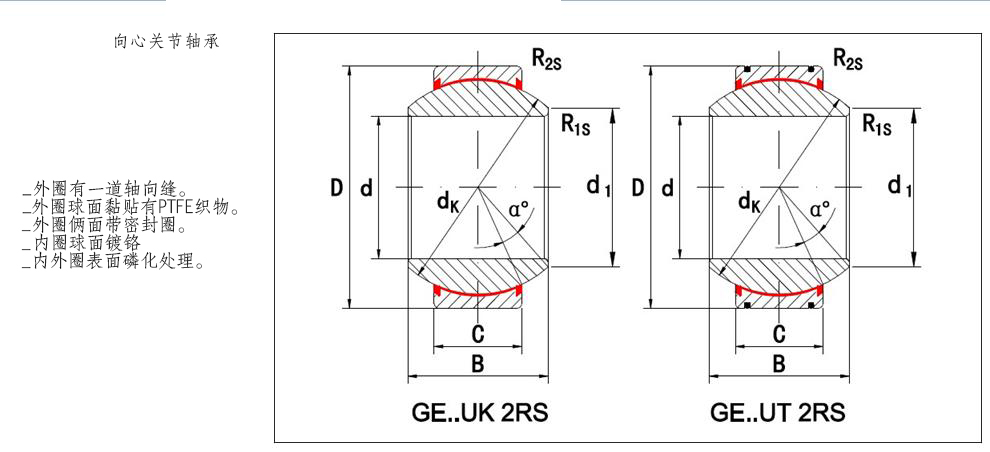

侏催 樫雁 mm 減塞 KN 嶷楚 kg

d D B C d1 dk R1s R2s α 強 床




min   min min 「 C C0
GE15UK2RS 15 26 12 9 18 22 0.3 0.3 9 26 52 0.035
GE17UK2RS 17 30 14 10 20 25 0.3 0.3 10 48.7 81.2 0.041
GE20UK2RS 20 35 16 12 24 29 0.3 0.3 9 67.5 112 0.066
GE25UK2RS 25 42 20 16 29 35.5 0.6 0.6 7 127 212 0.119
GE30UK2RS 30 47 22 18 34 40.7 0.6 0.6 6 165 275 0.153
GE35UK2RS 35 55 25 20 39 47 0.6 1 6 210 350 0.233
GE40UK2RS 40 62 28 22 45 53 0.6 1 7 277 462 0.306
GE45UK2RS 45 68 32 25 50 60 0.6 1 7 360 600 0.427
GE50UK2RS 50 75 35 28 55 66 0.6 1 6 442 737 0.546
GE60UK2RS 60 90 44 36 66 80 1 1 6 690 1150 1.04
GE70UK2RS 70 105 49 40 77 92 1 1 6 885 1475 1.55
GE80UK2RS 80 120 55 45 88 105 1 1 6 1125 1875 2.31
GE90UK2RS 90 130 60 50 98 115 1 1 5 1283 2300 2.75
GE100UK2RS 100 150 70 55 109 130 1 1 7 1717 2862 4.45
GE110UK2RS 110 160 70 55 121 140 1 1 6 1845 3075 4.82
GE120UK2RS 120 180 85 70 135 160 1 1 6 2685 4475 8.05
GE140UK2RS 140 210 90 70 155 180 1 1 7 3015 5025 11.02
GE160UT2RS 160 230 105 80 170 200 1 1 8 3840 6400 14.01
GE180UT2RS 180 260 105 80 199 225 1.1 1.1 6 4320 7200 18.65
GE200UT2RS 200 290 130 100 213 250 1.1 1.1 7 6000 10000 28.03
GE220UT2RS 220 320 135 100 239 275 1.1 1.1 8 6600 11000 35.51
GE240UT2RS 240 340 140 100 265 300 1.1 1.1 8 7200 12000 39.91
GE260UT2RS 260 370 150 110 288 325 1.1 1.1 7 8550 14250 51.54
GE280UT2RS 280 400 155 120 313 350 1.1 1.1 6 10050 16750 65.06
GE300UT2RS 300 430 165 120 336 375 1.1 1.1 7 10800 18000 78.07
