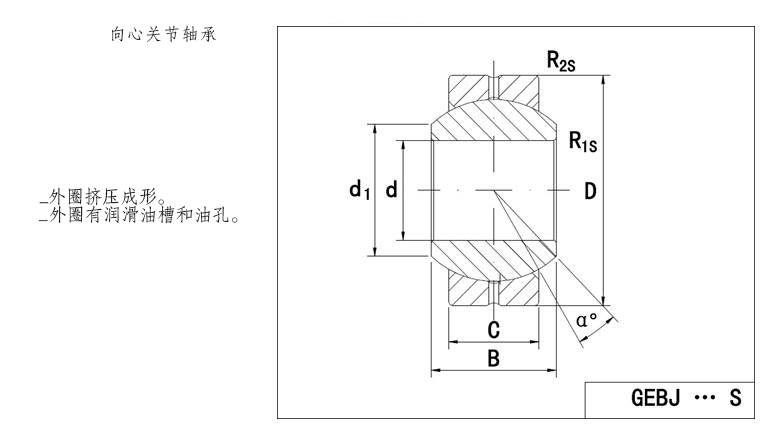

| 侏催 |
樫雁 mm |
減塞KN |
嶷楚 kg |
|
d |
D |
B |
C |
d1 |
dk |
R1s |
R2s |
α |
強 |
床 |
|
|
|
|
|
|
min |
|
min |
min |
「 |
C |
C0 |
|
| GEBJ5S |
5 |
13 |
8 |
6 |
7.7 |
|
0.3 |
0.3 |
13 |
3.2 |
9 |
0.007 |
| GEBJ6S |
6 |
16 |
9 |
6.75 |
9 |
|
0.3 |
0.3 |
13 |
4.1 |
12 |
0.01 |
| GEBJ8S |
8 |
19 |
12 |
9 |
10.4 |
|
0.3 |
0.3 |
13 |
6.5 |
20 |
0.016 |
| GEBJ10S |
10 |
22 |
14 |
10.5 |
12.9 |
|
0.3 |
0.6 |
13 |
9.6 |
28 |
0.031 |
| GEBJ12S |
12 |
26 |
16 |
12 |
15.4 |
|
0.3 |
0.6 |
13 |
12 |
37 |
0.055 |
| GEBJ14S |
14 |
28 |
19 |
13.5 |
16.9 |
|
0.3 |
0.6 |
15 |
16 |
49 |
0.078 |
| GEBJ16S |
16 |
32 |
21 |
15 |
19.4 |
|
0.3 |
0.6 |
15 |
20 |
61 |
0.095 |
| GEBJ18S |
18 |
35 |
23 |
16.5 |
21.9 |
|
0.3 |
0.6 |
15 |
25 |
74 |
0.14 |
| GEBJ20S |
20 |
40 |
25 |
18 |
24.4 |
|
0.3 |
0.6 |
15 |
30 |
89 |
0.18 |
| GEBJ22S |
22 |
42 |
28 |
20 |
25.8 |
|
0.3 |
0.6 |
15 |
36 |
108 |
0.21 |
| GEBJ25S |
25 |
47 |
31 |
22 |
29.6 |
|
0.6 |
0.6 |
15 |
45 |
130 |
0.35 |
| GEBJ30S |
30 |
55 |
37 |
25 |
34.8 |
|
0.6 |
0.6 |
15 |
61 |
178 |
0.56 |
