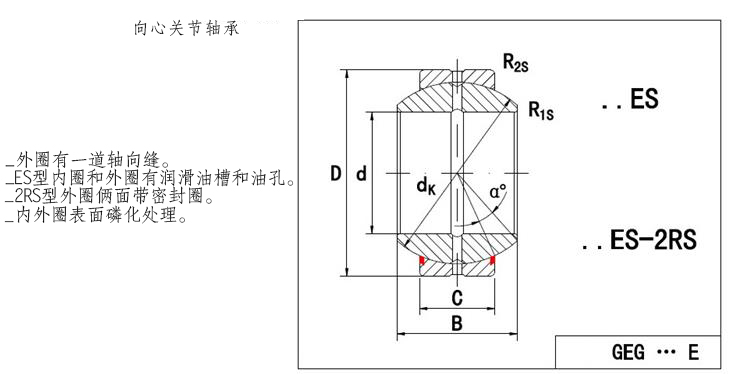

| 型号 | 尺寸 mm | 负荷 KN | 重量 kg | ||||||||
| d | D | B | C | dk | R1s | R2s | α | 动 | 静 | ||
| min | min | ≈ | C | C0 | |||||||
| GEG8E | 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 21 | 8.15 | 40.5 | 0.014 |
| GEG10E | 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 18 | 10.8 | 54 | 0.02 |
| GEG12E | 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 18 | 17 | 85 | 0.034 |
| GEG15ES GEG15ES2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 21.2 | 106 | 0.046 |
| GEG17ES GEG17ES2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 30 | 146 | 0.077 |
| GEG20ES GEG20ES2RS | 20 | 42 | 25 | 16 | 35.5 | 0.6 | 0.6 | 17 | 48 | 240 | 0.15 |
| GEG25ES GEG20ES2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 62 | 310 | 0.19 |
| GEG30ES GEG30ES2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 80 | 400 | 0.29 |
| GEG35ES GEG35ES2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 100 | 500 | 0.38 |
| GEG40ES GEG40ES2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 127 | 640 | 0.54 |
| GEG45ES GEG45ES2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 156 | 780 | 0.68 |
| GEG50ES GEG50ES2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 245 | 1220 | 1.4 |
| GEG60ES GEG60ES2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 315 | 1560 | 2 |
| GEG70ES GEG70ES2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 400 | 2000 | 2.9 |
| GEG80ES GEG80ES2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 490 | 2450 | 3.5 |
| GEG90ES GEG90ES2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 610 | 3050 | 5.4 |
| GEG100ES GEG100ES2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 655 | 3250 | 5.9 |
| GEG110ES GEG110ES2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 950 | 4750 | 9.6 |
| GEG120ES GEG120ES2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 1080 | 5400 | 15.1 |
| GEG140ES GEG140ES2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 1360 | 6800 | 19.01 |
| GEG160ES GEG160ES2RS | 160 | 260 | 135 | 80 | 225 | 1 | 1.1 | 16 | 1530 | 7650 | 24.7 |
| GEG180ES GEG180ES2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 2120 | 10600 | 35.4 |
| GEG200ES GEG200ES2RS | 200 | 320 | 165 | 100 | 270 | 1.1 | 1.1 | 15 | 2320 | 11600 | 45.28 |
| GEG220ES GEG220ES2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 2550 | 12700 | 51.12 |
| GEG240ES GEG240ES2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 3030 | 15190 | 65.12 |
| GEG260ES GEG260ES2RS | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 3570 | 17850 | 82.44 |
| GEG280ES GEG280ES2RS | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 3800 | 19100 | 97.21 |
