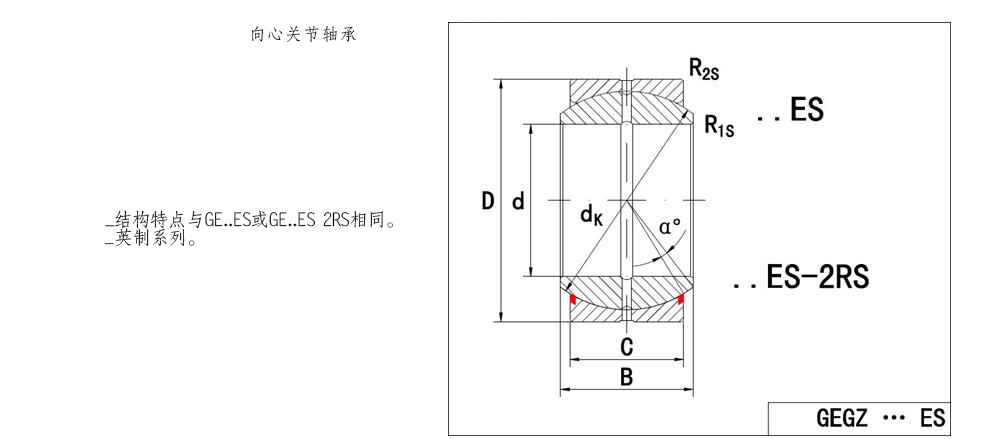

| 型号 | 尺寸 mm | 负荷 KN | 重量 kg | ||||||||
| d | D | B | C | dk | R1s | R2s | α | 动 | 静 | ||
| min | min | ≈ | C | C0 | |||||||
| GEGZ31ES GEGZ31ES2RS | 31.75 | 61.913 | 35.306 | 28.575 | 54.7 | 0.6 | 1 | 15 | 125 | 375 | 0.454 |
| GEGZ38ES GEGZ38ES2RS | 38.1 | 71.438 | 40.132 | 33.325 | 63.9 | 0.6 | 1 | 14 | 170 | 510 | 0.726 |
| GEGZ44ES GEGZ44ES2RS | 44.45 | 80.963 | 46.228 | 38.1 | 73 | 0.6 | 1 | 14 | 224 | 670 | 1.14 |
| GEGZ50ES GEGZ50ES2RS | 50.8 | 90.488 | 52.578 | 42.85 | 82 | 0.6 | 1 | 14 | 280 | 850 | 1.68 |
| GEGZ57ES GEGZ57ES2RS | 57.15 | 100.013 | 58.877 | 47.625 | 92 | 0.6 | 1 | 14 | 355 | 1060 | 2.01 |
| GEGZ63ES GEGZ63ES2RS | 63.5 | 111.125 | 64.643 | 52.375 | 100 | 1 | 1 | 14 | 415 | 1250 | 2.95 |
| GEGZ69ES GEGZ69ES2RS | 69.85 | 120.65 | 70.866 | 57.15 | 109.5 | 1 | 1 | 14 | 500 | 1500 | 3.63 |
| GEGZ76ES GEGZ76ES2RS | 76.2 | 130.175 | 76.759 | 61.9 | 119 | 1 | 1 | 14 | 585 | 1760 | 4.36 |
| GEGZ82ES GEGZ82ES2RS | 82.55 | 139.7 | 82.931 | 66.675 | 128 | 1 | 1 | 14 | 680 | 2040 | 5.31 |
| GEGZ88ES GEGZ88ES2RS | 88.9 | 149.225 | 90.424 | 71.425 | 137 | 1 | 1 | 14 | 780 | 2360 | 6.81 |
| GEGZ95ES GEGZ95ES2RS | 95.25 | 158.75 | 94.945 | 76.2 | 146 | 1 | 1 | 14 | 900 | 2650 | 8.85 |
| GEGZ101ES GEGZ101ES2RS | 101.6 | 117.8 | 107.315 | 85.725 | 164.5 | 1 | 1 | 10 | 1120 | 3400 | 10.2 |
