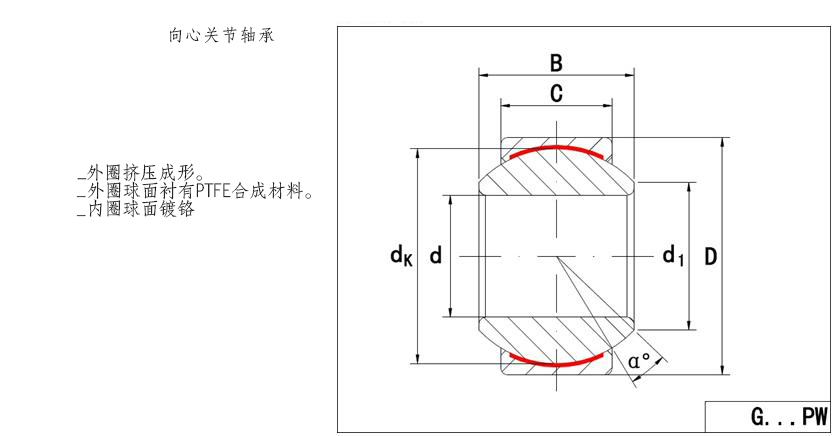

| 型号 | 尺寸 mm | 负荷KN | 重量 kg | |||||||
| d | d1 | B | C | D | dk | α | 动 | 静 | ||
| ≈ | C | C0 | ||||||||
| G5PW | 5 | 7.7 | 8 | 6 | 13 | 11.112 | 13 | 6.2 | 17 | 0.007 |
| G6PW | 6 | 8.9 | 9 | 6.75 | 16 | 12.7 | 13 | 7.5 | 22 | 0.01 |
| G8PW | 8 | 10.3 | 12 | 9 | 19 | 15.875 | 13 | 12 | 36 | 0.016 |
| G10PW | 10 | 12.9 | 14 | 10.5 | 22 | 19.05 | 13 | 17 | 50 | 0.031 |
| G12PW | 12 | 15.4 | 16 | 12 | 26 | 22.225 | 13 | 22 | 67 | 0.065 |
| G14PW | 14 | 16.8 | 19 | 13.5 | 28 | 25.4 | 15 | 28 | 86 | 0.09 |
| G16PW | 16 | 19.3 | 21 | 15 | 32 | 28.575 | 15 | 35 | 107 | 0.1 |
| G18PW | 18 | 21.8 | 23 | 16.5 | 35 | 31.75 | 15 | 47 | 131 | 0.125 |
| G20PW | 20 | 24.3 | 25 | 18 | 40 | 34.925 | 15 | 51 | 157 | 0.18 |
| G22PW | 22 | 25.8 | 28 | 20 | 42 | 38.1 | 15 | 62 | 191 | 0.21 |
| G25PW | 25 | 29.5 | 31 | 22 | 47 | 42.86 | 15 | 77 | 236 | 0.295 |
| G30PW | 30 | 34.8 | 37 | 25 | 55 | 50.8 | 15 | 103 | 318 | 0.425 |
| G35PW | 35 | 37.7 | 43 | 28 | 62 | 57.15 | 16 | 130 | 400 | 0.5 |
| G40PW | 40 | 45.2 | 49 | 33 | 75 | 66.67 | 17 | 179 | 550 | 0.9 |
| G50PW | 50 | 56.6 | 60 | 45 | 90 | 82.5 | 12 | 302 | 928 | 1.64 |
