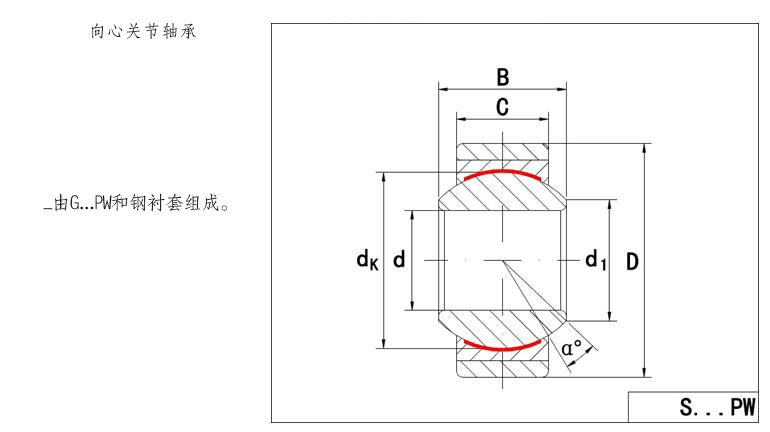

| 型号 | 尺寸 mm | 负荷KN | 重量 kg | |||||||
| d | d1 | B | C | D | dk | α | 动 | 静 | ||
| ≈ | C | C0 | ||||||||
| S5PW | 5 | 7.7 | 8 | 6 | 16 | 11.112 | 13 | 6.2 | 17 | 0.009 |
| S6PW | 6 | 8.9 | 9 | 6.75 | 18 | 12.7 | 13 | 7.5 | 22 | 0.013 |
| S8PW | 8 | 10.3 | 12 | 9 | 22 | 15.875 | 13 | 12 | 36 | 0.024 |
| S10PW | 10 | 12.9 | 14 | 10.5 | 26 | 19.05 | 13 | 17 | 50 | 0.04 |
| S12PW | 12 | 15.4 | 16 | 12 | 30 | 22.225 | 13 | 22 | 67 | 0.08 |
| S14PW | 14 | 16.8 | 19 | 13.5 | 34 | 25.4 | 15 | 28 | 86 | 0.11 |
| S16PW | 16 | 19.3 | 21 | 15 | 38 | 28.575 | 15 | 35 | 107 | 0.13 |
| S18PW | 18 | 21.8 | 23 | 16.5 | 42 | 31.75 | 15 | 43 | 131 | 0.17 |
| S20PW | 20 | 24.3 | 25 | 18 | 46 | 34.925 | 15 | 51 | 157 | 0.23 |
| S22PW | 22 | 25.8 | 28 | 20 | 50 | 38.1 | 15 | 62 | 191 | 0.28 |
| S25PW | 25 | 29.5 | 31 | 22 | 56 | 42.86 | 15 | 77 | 236 | 0.39 |
| S30PW | 30 | 34.8 | 37 | 25 | 66 | 50.8 | 15 | 103 | 318 | 0.61 |
