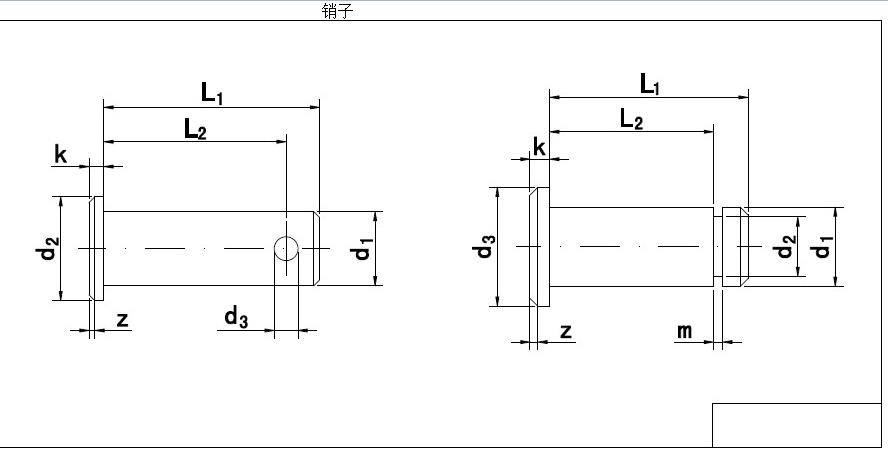

| 型号 | 尺寸 mm | 重量kg | ||||||
| d1 | d2 | d3 | L1 | L2 | k | Z | ||
| h11 |
h14 | H14 | 0.3 | 0.5 |
js14 | |||
| BGL4x12x10 | 4 | 6 | 1 | 12 | 10 | 1 | 0.5 | 0.001 |
| BGL5x15x12.3 | 5 | 8 | 1.2 | 15 | 12.3 | 1.5 | 0.5 | 0.003 |
| BKL6x18x15.3 | 6 | 9 | 1.6 | 18 | 15.3 | 1.5 | 0.5 | 0.005 |
| BKL8x23x19.5 | 8 | 12 | 2 | 23 | 19.5 | 2 | 1 | 0.01 |
| BKL10x29x24.5 | 10 | 14 | 3.2 | 29 | 24.5 | 2 | 1 | 0.019 |
| BKL12x35x29.5 | 12 | 17 | 4 | 35 | 29.5 | 3 | 1.5 | 0.034 |
| BKL14x40x32.5 | 14 | 20 | 4 | 40 | 32.5 | 3 | 1.5 | 0.053 |
